Slurry Electromagnetic Separator
Wet Processing
Processing Image
Processing Image
Processing Image

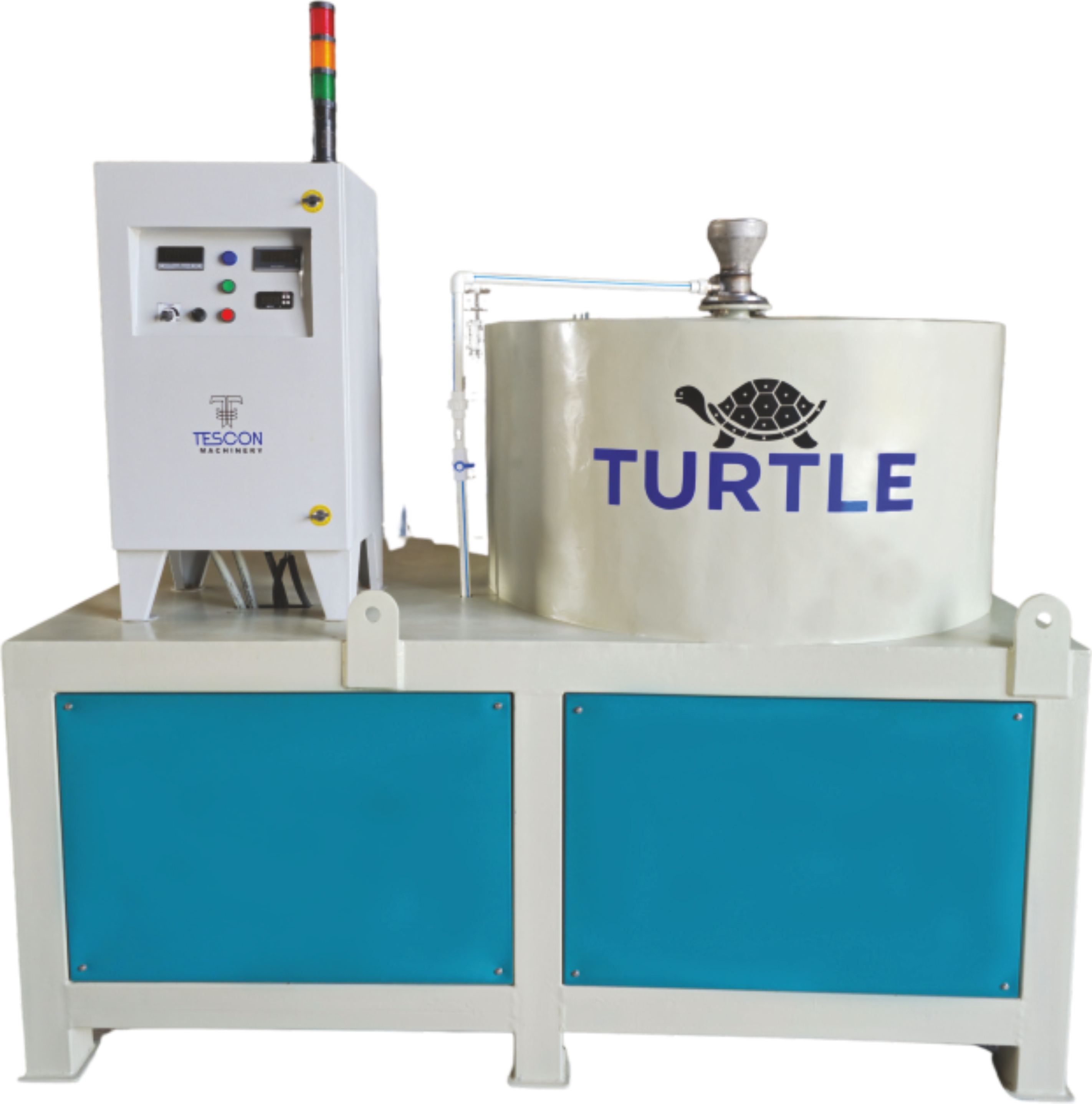

Slurry Electromagnetic Separator

Uses an electromagnetic coil and special matrix mesh to create a high-gradient magnetic field. Slurry flows through the chamber—magnetic contaminants are captured while non-magnetic material passes through.

The separator runs in two automatically controlled stages: **Working Stage** — magnetic impurities are captured on the magnetized matrix. **Sediment Discharge Stage** — the feed is stopped, the magnetic field is switched off, and the collected impurities are flushed out through the waste outlet. This cyclic operation ensures stable separation efficiency and continuous production.

Models: BAJRANG-1000, BAJRANG-1300, BAJRANG-1700.
Features
  • Fast Cooling System
  • Operation Fail Alarm System
  • Fast Washing Cycle
  • Over Heat Alarm
  • Coil Safety
  • Oil Cooling
Specifications
Model BAJRANG-1000 / BAJRANG-1300 / BAJRANG-1700
Magnetic Intensity 1.0T / 1.3T / 1.7T
Chamber Diameter Ø1000 mm
Power 132 kW / 180 kW / 250 kW
Input Power 440 V
Size (mm) 3650×2250×3250 (1000/1300) | 3800×2600×3500 (1700)
